For Sale: New Airblast Industrial Blast Room 15×6×6 m – Uninstalled, Complete with All Components

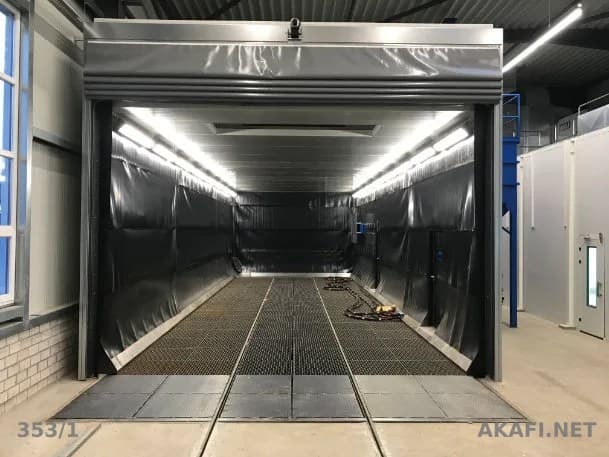

New Airblast Industrial Blast Room 15×6×6 m

Available for sale: an Airblast Industrial Blast Room system

The equipment is brand new and has never been installed or operated. All components are fully present on the ground and ready for sale.

Key Specifications

• Manufacturer: Airblast
• System Type: Industrial Blast Room
• Condition: Brand new, uninstalled
• Blast Room Dimensions: 15 m length × 6 m width × 6 m height
• Approximate Room Volume: 540 m³
• System suitable for operation by one or two operators

Dust Filtration and Collection System

The system includes a Cartridge Dust Collector type PF-18-H

• Suction Capacity: 29,000 m³/h
• Static Pressure: 1,600 Pa
• Electric Motor: 18.5 kW
• Voltage: 400/690 V
• Three Phase
• Frequency: 50/60 Hz
• Number of Cartridge Filters: 18
• Total Filter Area: 468.8 m²
• Filter Material: Polyester Fabric
• Filtration Efficiency: 99.9%
• Maximum Dust Emission: Less than 1.5 mg/Nm³
• Cleaning: Automatic and continuous using compressed air
• Cleaning Pressure: Approximately 4 bar
• Dust Collection System: Big Bag

Suction Ducting

The system includes complete Suction Ducting with an adjustable Deflector Plate

• Deflector Plate Thickness: 3 mm

Bucket Elevator

• Type: Airblast E80
• Approximate Height: 5,900 mm
• Motor: 1.0 kW
• Voltage: 400 V
• Frequency: 60 Hz
• Capacity: 80 litres per minute
• Bearing System: Sealed and dust-resistant

Abrasive Cleaning System

Cascade Cleaner type K-500

• Height: 650 mm
• Width: 500 mm
• Materials: Manufactured from steel plates 3 mm and 5 mm thick
• Used to clean and separate dust and contaminants from the abrasive before reuse

Abrasive Storage Tank

Abrasive Storage Silo S-2000

• Capacity: 2,000 litres
• Length: 1,400 mm
• Width: 1,200 mm
• Height: 3,630 mm
• Approximate Capacity for Garnet: Approximately 4.6 tonnes
• Approximate Capacity for Steel Grit: Approximately 9 tonnes

Blast Machines

The system includes 2 Airblast System-7 blast machines

• Capacity per machine: 200 litres
• Each machine includes a Blast Machine ABSC-2452 with Micro Valve, RCV Valve, Dead Man Handle, and Moisture Separator
• Heavy Duty blast hose, 20 m length
• Nozzle Holder
• Coupling
• Venturi Tungsten Carbide Blast Nozzle
• Helmet Air Filter
• Helmet air hose, 20 m length
• Extreme Blast Helmet
• Spare lenses
• Wire Mesh Screens
• Protective clothing and gloves for blast work

Blast Room Wall Protection

• Type: Blast-resistant special Rubber Lining
• Thickness: 3 mm
• Anti Static
• Total Area: 220 m²

Abrasive Recovery Floor System

Floor Grids

• Area: 85 m²
• Steel Grating Size: 40 × 5 mm
• Width: 800 mm
• Maximum Load: 9,100 kg per m²
• Maximum Wheel Pressure: 1,435 kg

Scraper Floor

• Length: 15 m
• Width: 6 m
• Number of Scraper Lanes: Three
• Operation: Via Pneumatic Cylinders
• The system is designed to recover the abrasive and return it to the cleaning and storage system

V-Belt Conveyor

• Approximate Length: 7 m
• Belt Width: 300 mm
• Motor: 1.5 kW
• Voltage: 400 V
• Frequency: 60 Hz
• Motor: Sealed and dust-resistant
• Side Skirts total length: 38 m

Lighting

• Quantity: 20 OSRAM LED units
• Unit Power: 120 W
• Suitable for the industrial blast room environment

Electrical Control Panel

• Independent Electrical Control Panel
• Includes Emergency Stop
• Includes basic start, stop, and control systems for the equipment

Equipment Condition

• Equipment is brand new
• Never installed
• Never operated
• All parts and components are fully present on the ground

Price

Purchase price excluding VAT and excluding installation: price to be added here in Saudi Riyals

Notes

• Price excludes VAT
• Price excludes installation or commissioning on site
• Equipment is sold as-is: brand new and uninstalled
• Suitable for factories, steel fabrication and metal structure workshops, surface preparation, rust and paint removal, and product preparation prior to coating
