New Airblast Industrial Paint Room 15×6×6 m – Complete ATEX Extraction System, Uninstalled

New Airblast industrial paint room, size 15×6×6 m

An Airblast Industrial Paint Room system is available for sale

The equipment is brand new, has never been installed or operated, and all components are present and complete on the ground

Manufacturer: Airblast

System type: Industrial Paint Room / Spray Painting Room

Condition: Brand new and uninstalled

Internal dimensions per detailed specifications: 15 m length × 6 m width × 6 m height

Approximate room volume: 540 cubic metres

The room is designed for industrial painting, preparation and finishing of products and metal structures

Suitable for Primer and Finishing works, water-based paints and solvent-based paints

Standards and Classification

The system is designed in accordance with EN 16985, the standard for spray booths and rooms for organic materials

Compliant with ATEX Directive 2014/34/EU

Operating zone classification during spraying: ATEX Zone 2

Specifications indicate CE certification in accordance with the aforementioned European standard

Ventilation and Air Extraction System

Total air extraction capacity approximately 72,000 m³/h

Air change rate approximately 130 times per hour for the full-volume room

The system is designed to provide adequate airflow during the painting process

Design airflow velocity approximately 0.3 m/s around the workpieces

Paint Fume and Overspray Extraction System

The system includes 4 Paint Fume Extraction / Dry Spray Wall units

Extraction capacity per unit: 18,000 m³/h

Total extraction capacity for all four units: 72,000 m³/h

Approximate dimensions of each extraction unit

Length: 3,000 mm

Depth: 600 mm

Height: 1,100 mm

Each unit includes a Paint Stop system, an Andrea Filter system, an air plenum chamber and an additional overspray separation system

Units are manufactured from Zinc Plated Sheet Metal

Andrea Filters

The system includes Andrea Filters

Size stated in the offer: 0.9 × 11 m

Filtration efficiency stated in the offer: 91% to 98%

Paint Stop Filters

The system includes Paint Stop Filters

Size stated: 25 × 1

Filter material: Fiberglass

Extraction Fans

The system includes 4 Extraction Fans, type BDS 714

Capacity per fan: 18,000 m³/h

Pressure: 710 Pa

Motor power per fan: 7.5 kW

Voltage: 3 × 400 V

Motor speed: 1,400 rpm

Fan classification: ATEX Zone 2

Noise level: approximately 85 dB(A)

Fan weight: approximately 45 kg

Fan diameter: 700 mm

Includes inlet and outlet Flanges

Ductwork

The system includes complete Spiral Ducting

Duct diameter: approximately 700 mm

Includes Couplers

Includes Chimney

Includes 4 G.I. elbows at 90 degrees

Fresh Air Inlets

The system includes 3 Air Inlet Grids with Filters

These introduce fresh air and provide adequate air circulation inside the paint room

The inlets are equipped with filters to clean the incoming air

Lighting

The system includes 20 LED units

Lighting is specifically designed for industrial paint rooms

Dustproof

Fitted with a tempered glass protective cover

Fitted with a 45-degree angle mounting bracket

Classification: ATEX Zone 2

Sparkproof

Electrical Control Panel

The system includes a complete Electrical Control Panel

Includes Main Switch

Automatic Switch Controllers

Signalling Lamps

Control Buttons

Control of extraction system motors

Lighting control switches

Sequence Control for start and stop

Includes cables between the control panel and equipment as per the scope of supply stated in the offer

Safety Systems

The design includes a filter pressure monitoring system

An alarm is triggered when filters become blocked

The system includes safety means to stop the painting equipment in the event of insufficient ventilation

The system is designed to operate within ATEX Zone 2 requirements during the spraying process

Suitable Applications

Suitable for steel structure fabrication facilities

Suitable for heavy equipment manufacturing facilities

Suitable for painting pipes, tanks and metal products

Suitable for Steel Fabrication works

Suitable for industrial coating and corrosion protection works

Suitable for preparation and finishing of large-scale products and equipment

Equipment Condition

Equipment is brand new

Not installed

Not operated

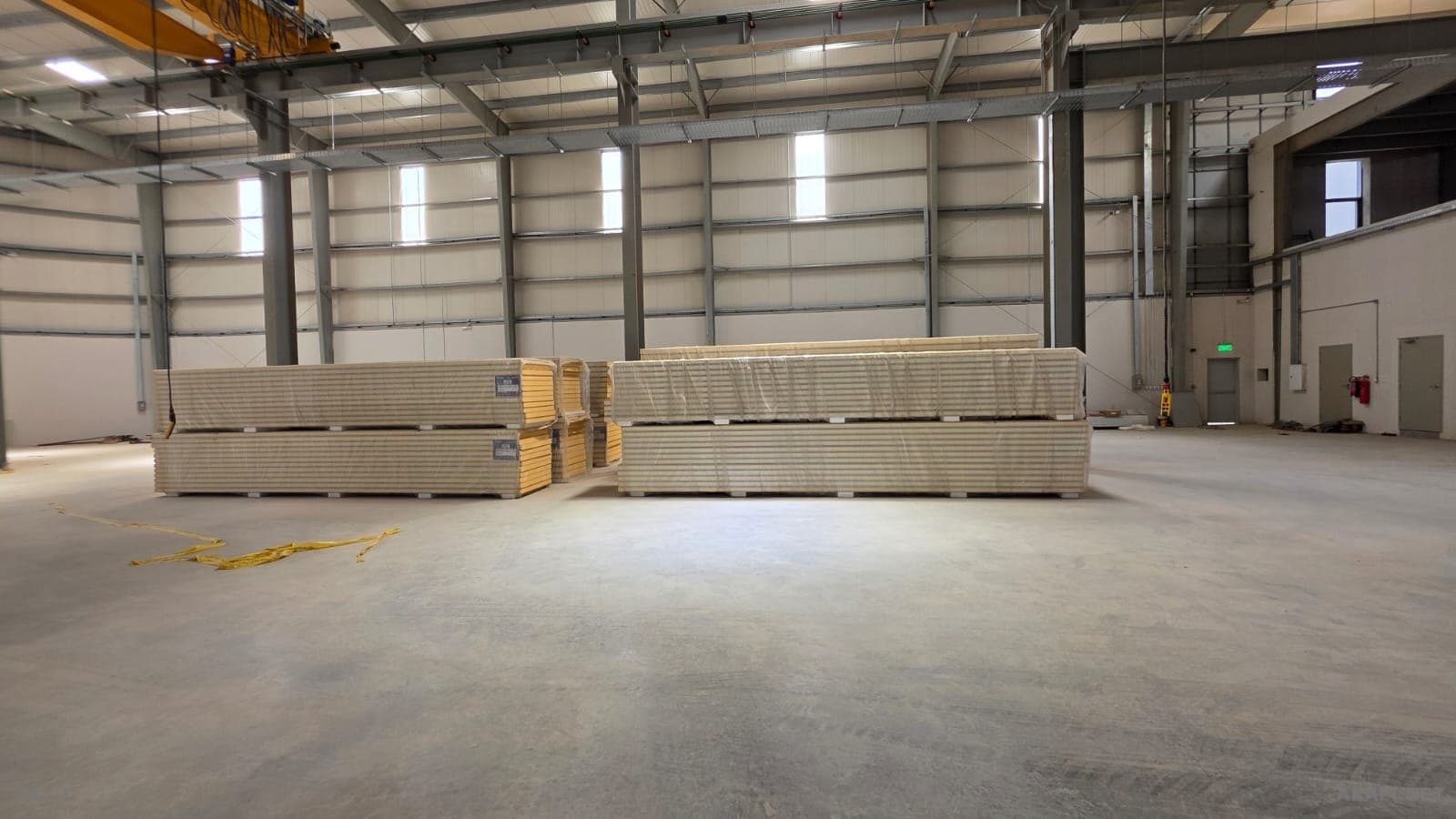

All parts and components are present and complete on the ground

Price

Purchase price excluding VAT and excluding installation: price to be added here – Saudi Riyals

Notes

Price excludes VAT

Price excludes on-site installation or commissioning

The equipment is sold as-is: brand new and uninstalled

Technical Note on Dimensions

The commercial summary in the offer states the paint room dimensions as 15×6×6 m, and the detailed internal dimensions in the specifications section are also 15×6×6 m
